HMD-PAxx04S1
HAIMECH
Features
The 4W bidirectional amplifier uses advanced signal processing technology to efficiently amplify both the transmitted and received signals. With a powerful 4W power, it can easily handle both weak signal sources and long-distance transmission signals, ensuring that the signal is not distorted or attenuated during transmission, making communication clearer and smoother.
Technical Specifications

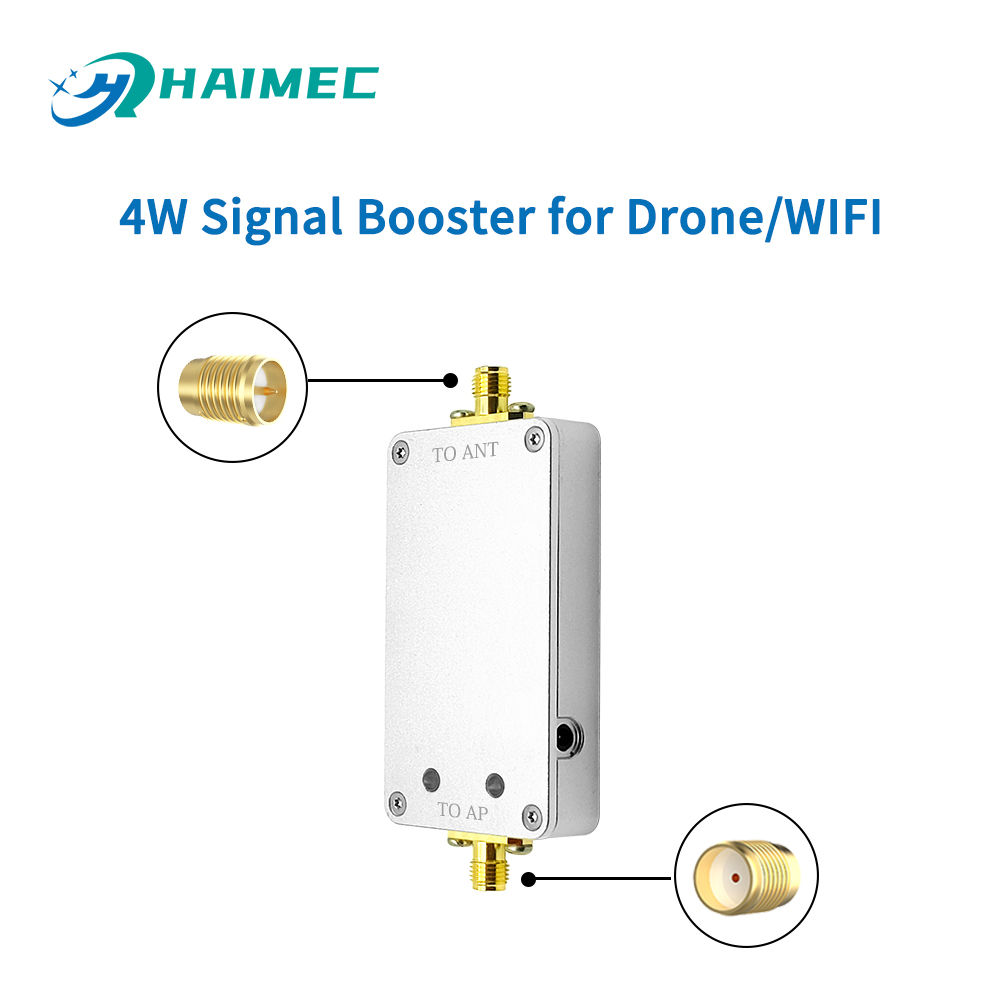

1 | Frequency Range | 0.9G/2.4G/5.2G/5.8G |
2 | Operating Voltage | 6-16V |
3 | ReceivingGain | 18dB±1 |
4 | Transmission Gain: | 18dB±1 |
5 | Max Output Power(P1dB) | 36Bm(4W) |
6 | Input Trigger Power | Min: 3dBm Max: 20dBm |
7 | EVM | 3%@29dBm |
8 | Noise Figure | ＜1.2dB |
9 | Current Supply | 430mA@Pout 30dBm 12V |
10 | TX/RX Switch Time Delay | ＜1 us |
11 | LED Indicator | Transmitter: Green; Receiver: Red |
12 | OperatingTemperature | -30℃～+70℃ |
13 | StorageTemperature | -40℃～+150℃ |
14 | Operating Humidity | Up to 95% rel. humidity |
15 | RF Connector | Input: SMA-female; Output: SMA-female |
16 | Power Socket | 2.5*0.7(mm) adapter/Biastee/USB |
17 | Shell Size | 64.5*34.5*10(mm) |
18 | Shell Material | Aluminum |
19 | Net Weight | 70g |

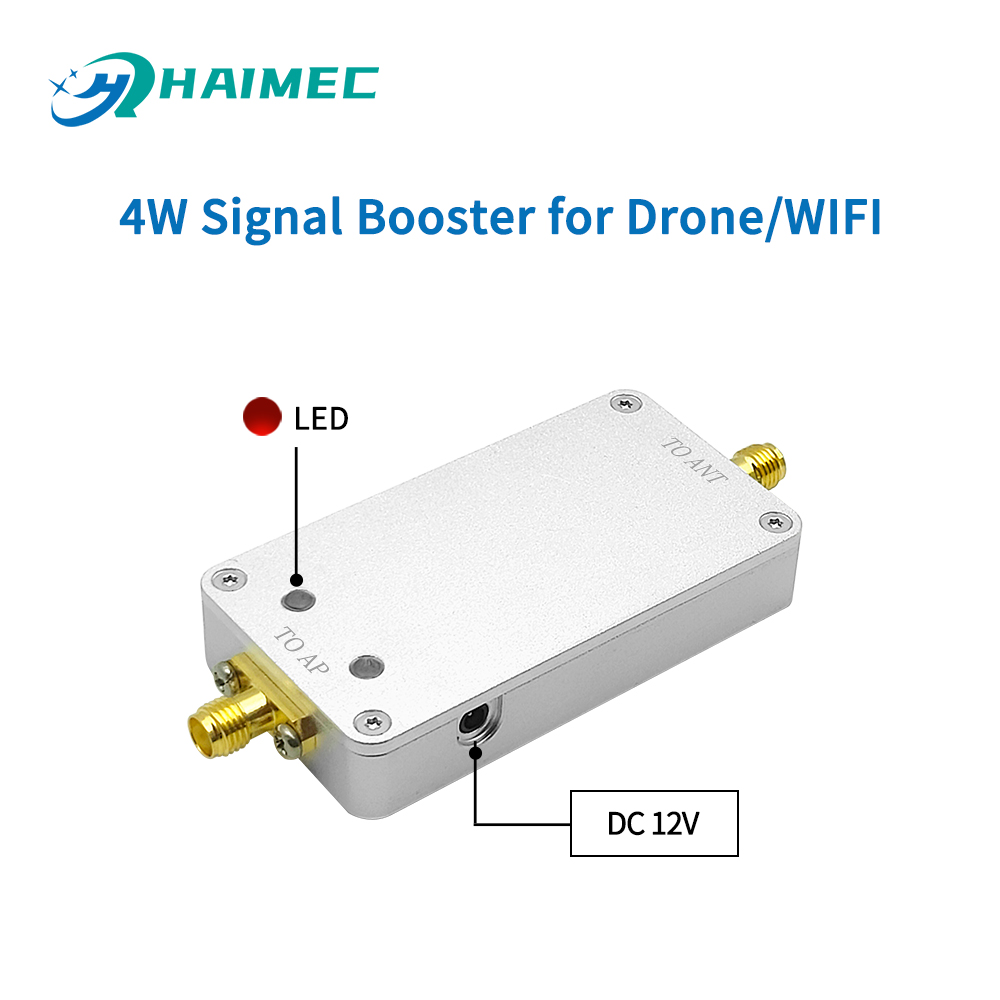

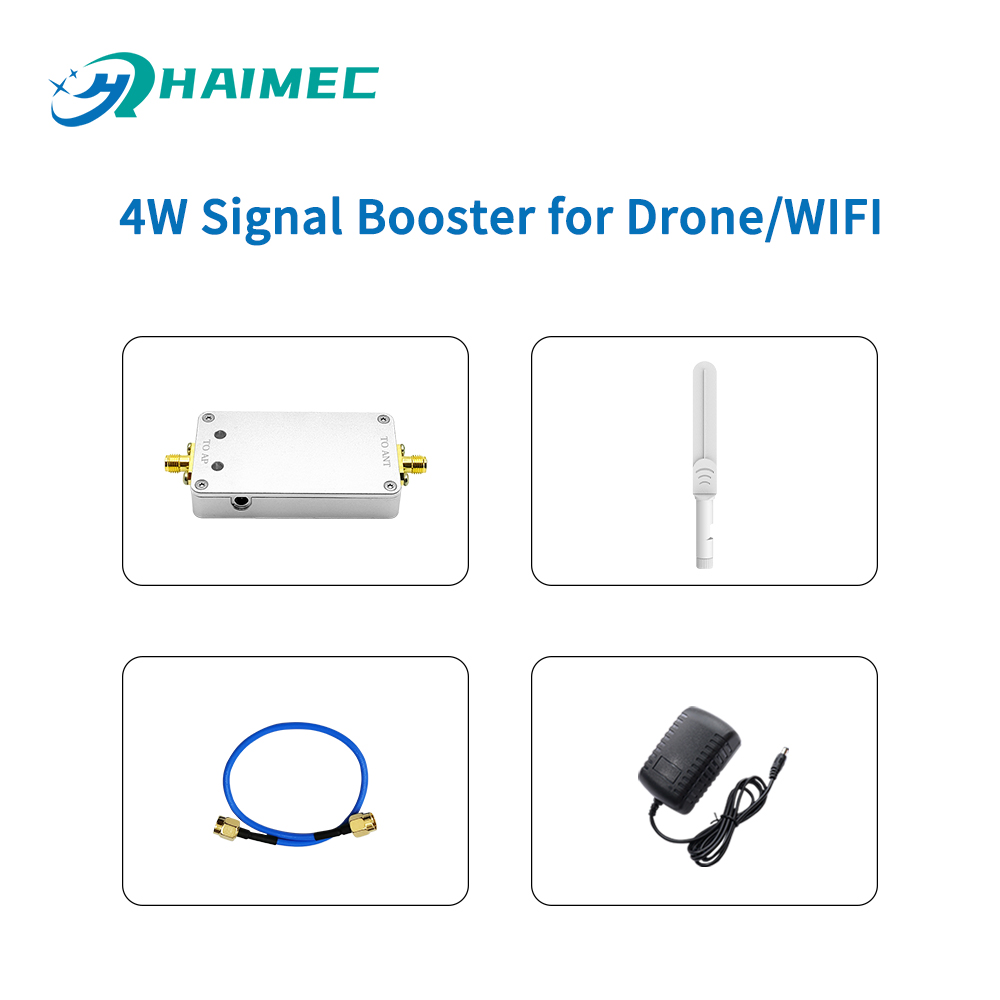

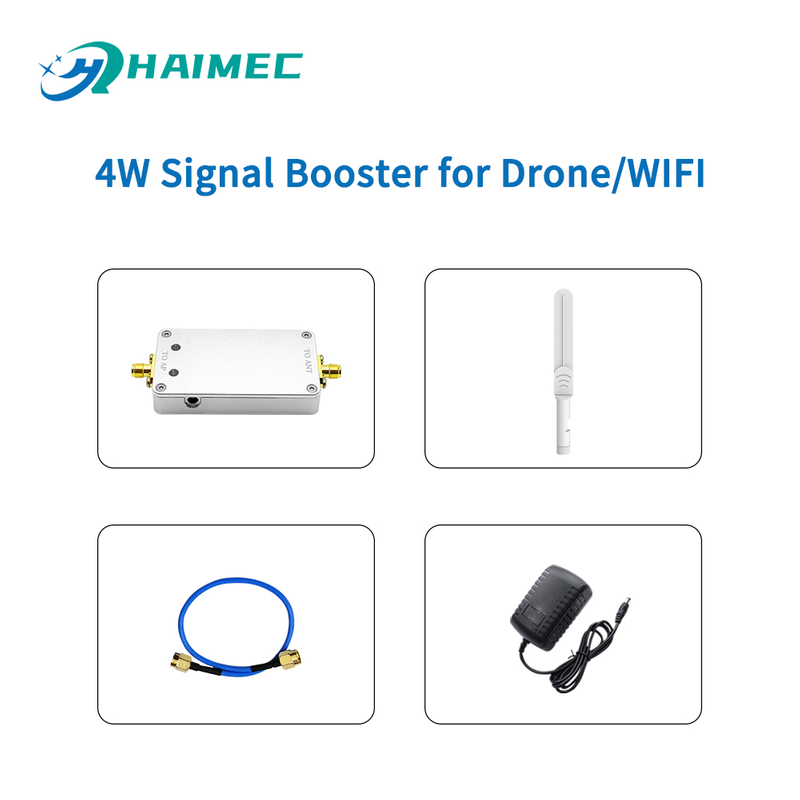

1. Easy to install
Use simple connecting cables to connect the signal source and receiving device to the input and output of the booster respectively.
2. No debugging required
Turn on the power switch of the 4W bidirectional amplifier. If the indicator light turns red, it means it is working normally. The device will automatically match the best signal strength without complicated debugging.
3. Easy maintenance
Just check the connecting cable of the device regularly to see if it is loose or damaged, keep the surface of the device clean, and avoid dust accumulation that affects heat dissipation. During use, if you encounter abnormal signals, check whether the power supply of the device is normal.

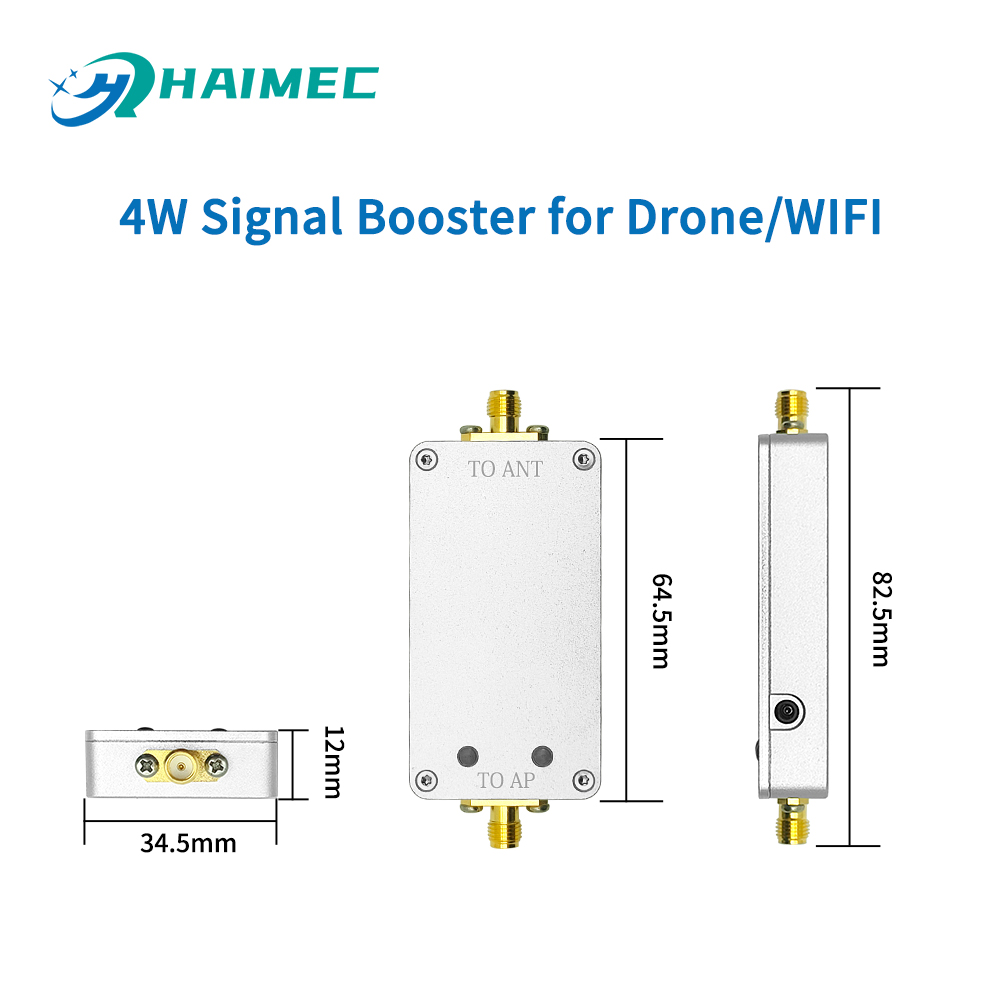

Dimensions
